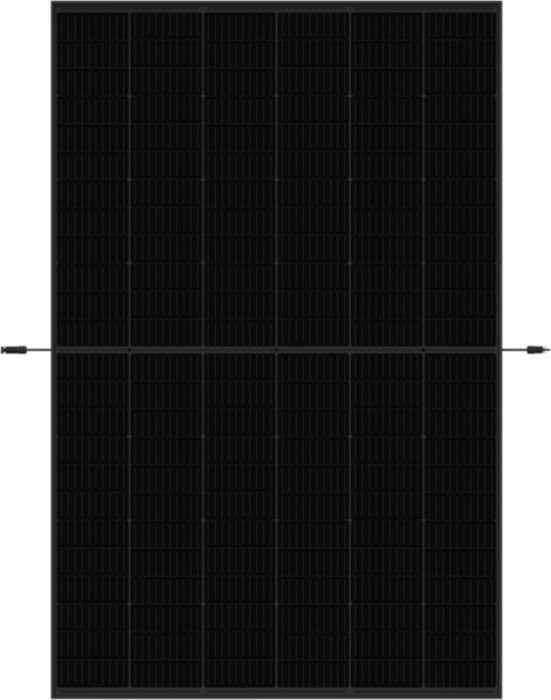

Trina Solar Vertex S TSM-410DE09R.05, 410Wp, 10 Stück, 4.10kWp

Product details

• Weight
  21.80kg
• Listed since
  2023-08-14
• Operating temperature
  -40°C to +85°C
• Connector
  MC4
• protection class
  IP68
• tolerance
  0-5W
• cells
  144
• Modulanzahl
  10
• technology
  Monokristallin, P-Type, PERC
• Dimensions
  1134x1762x30mm (WxHxD)
• area incl. frame
  2.00m²
• Manufacturer
  Trina Solar
• Produktgarantie
  15 years
• Sogfestigkeit max.
  4000Pa, 408kg/m²
• Schneelast max.
  6000Pa, 612kg/m²
• temperature-Koeffizient
  NOCT, +0.040%/°C (α Isc), -0.250%/°C (β Voc), -0.340%/°C (γ Pmax)
• Efficiency
  20.5%
• nominal voltage (Vmp)
  41.50V (STC), 38.50V (NOCT)
• power (Pmax)
  410Wp (STC), 309Wp (NOCT)
• Kurzschlussstrom (Isc)
  10.53A (STC), 8.49A (NOCT)
• Idling voltage (Voc)
  49.80V (STC), 46.90V (NOCT)
• output current max. (Imp)
  9.87A (STC), 8.03A (NOCT)
• Ausbeute
  205.19Wp/m² (STC), 154.65Wp/m² (NOCT)
• Leistungsgarantie
  at least 84.8% to 25 years (conforms 347.68Wp (STC), 262.03Wp (NOCT))
• total output set
  4.10kWp (STC), 3.09kWp (NOCT)
