Supermicro Supero C9X299-RPGF-L bulk (MBD-C9X299-RPGF-L-B)

Product details

• Listed since
  2022-05-03
• manufacturer
  Supermicro
• Graphics
  ASPEED AST2500 - onboard
• USB nomenclature
  Link
• Wireless
  not available
• Audio
  not available
• Lighting
  not available
• Warranty
  three years (handling by merchant)
• BIOS
  1x 16MB (128Mb)
• Multi-GPU
  not available
• Header Lighting
  not available
• Power connections
  1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
• Form factor
  ATX
• Header Cooling
  5x fan 4-Pin
• Buttons/Switches
  Power-Button (internal), Reset-Button (internal), clear-CMOS-Button (internal)
• Chipset
  Intel X299 (platform "Basin Falls")
• Socket
  Intel 2066
• RAID level
  0/1/5/10 (X299)
• RAM
  8x DDR4 DIMM, quad PC4-23466U/DDR4-2933, max. 256GB (UDIMM)
• Special features
  All solid capacitors, Diagnostic LED (segment indication)
• Extension slots
  4x PCIe 3.0 x16 (2x x16, 2x x8), 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280), 2x mini SAS HD SFF-8643 (PCIe 3.0 x4)
• Internal connectors
  1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 6x SATA 6Gb/s (X299), 1x TPM-Header

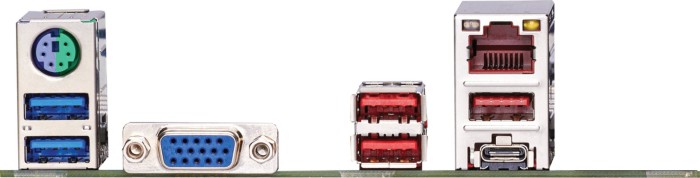

• External connectors
  1x VGA (AST2500), 1x USB-C 3.1 (10Gb/s, ASM3142), 3x USB-A 3.1 (10Gb/s, ASM3142), 2x USB-A 3.0 (5Gb/s), 1x RJ-45 1Gb LAN (Intel I210-AT), 1x toslink S/PDIF Out, 1x PS/2 Combo
