Weight
300g
Listed since
2023-01-30
Warranty
three years
USB nomenclature
Link
manufacturer
StarTech
Compatibility
universal
Housing colour
grey

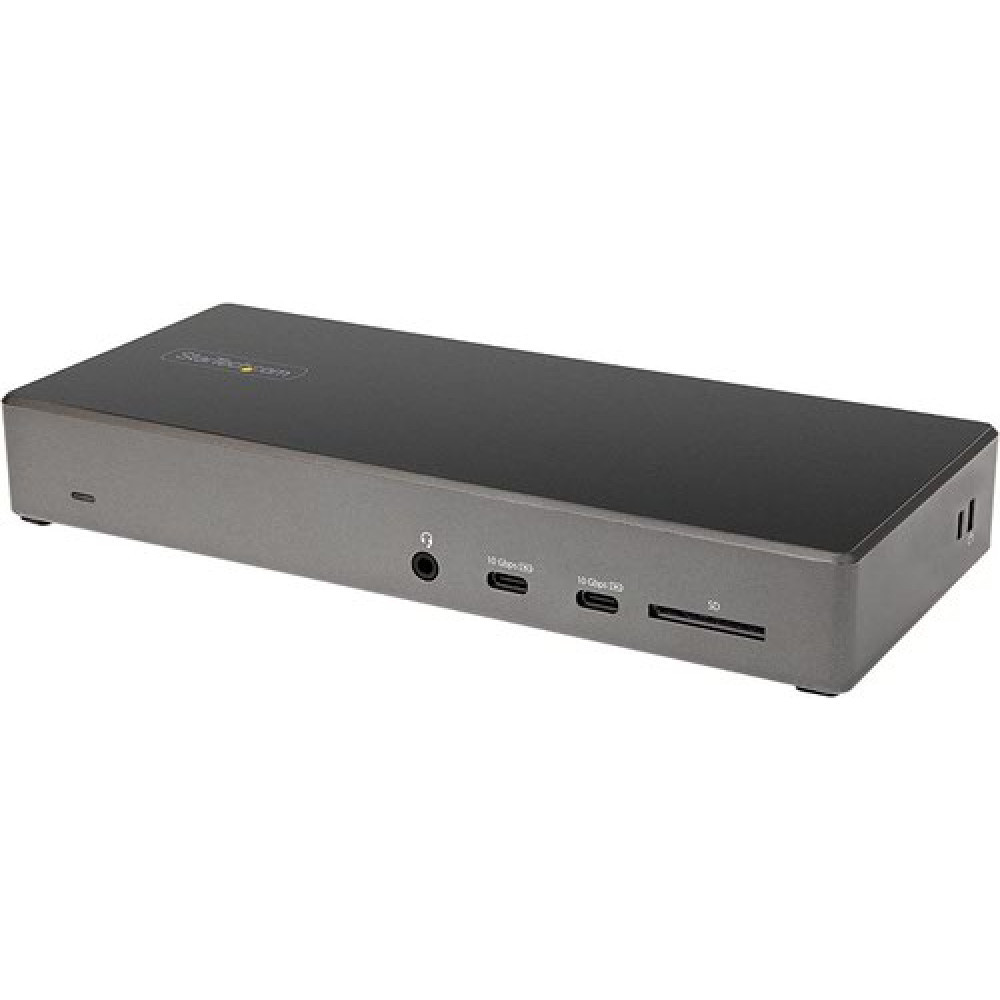

Type
LAN adapter, USB hub, card reader, video adapter, 1x external wired
Power supply

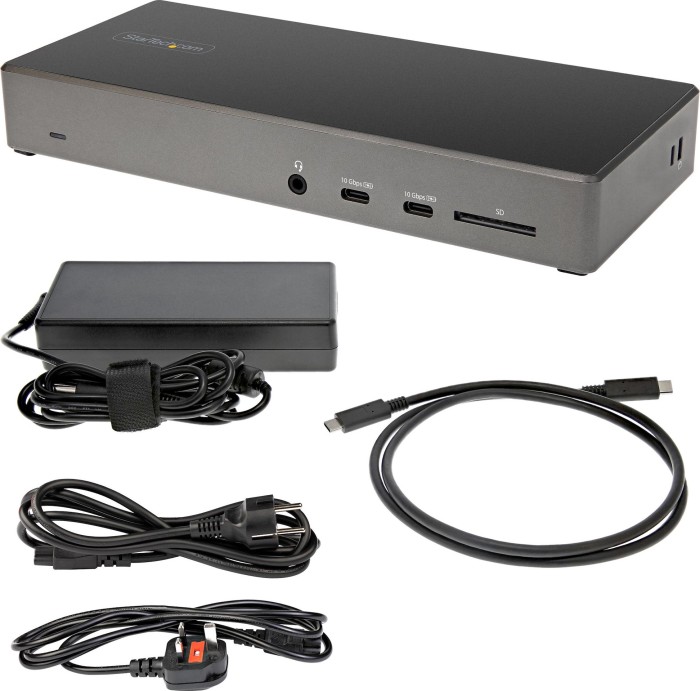

Power Supply not via connection, mains connection (1x barrel connector, max. 20V/8.5A/170W), External power supply required and included
Interface

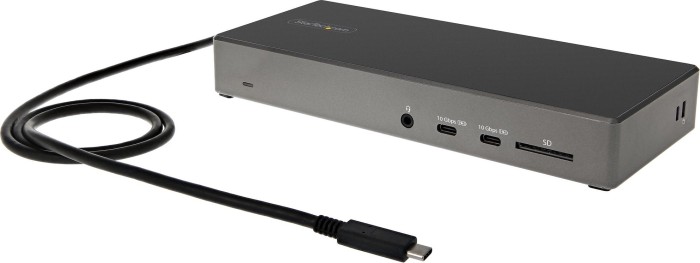

1x USB-C 3.1 (socket, 10Gb/s, USB-C with DisplayPort 1.4, USB PD max. 20V/5A/100W), 1x USB-C 3.1 (plug via cable, 10Gb/s, 1m cable length)
Dimensions
210x30x90mm (WxHxD)
Transmission

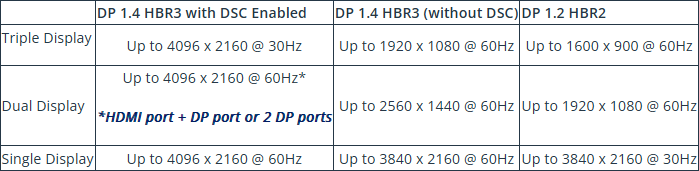

1x RJ-45 (10/100/1000Base-T), 1x USB-C 3.1 (socket, 10Gb/s, USB PD 3.0, USB BC 1.2, 5V/3A/15W), 1x USB-C 3.1 (socket, 10Gb/s, USB BC 1.2, 5V/3A/15W), 2x USB-A 3.0 (socket, 5Gb/s), 2x USB-A 2.0 (socket, 480Mb/s), 1x SD Card (SD Card, UHS-I), 2x DisplayPort 1.4 (socket, at DisplayPort 1.4 with DSC: max. 3x 4096x2160@30Hz or 2x 4096x2160@60Hz or 1x 4096x2160@60Hz, at DisplayPort 1.4 without DSC: max. 3x 1920x1080@60Hz or 2x 2560x1440@60Hz or 1x 3840x2160@60Hz), 1x HDMI 2.0 (socket, max. 3840x2160@60Hz), 1x jack (socket, 3.5mm)
Chipset
Realtek RTL815x (LAN adapter, RJ-45), Infineon Cypress CYPD4236 (USB PD), Synaptics VMM5320 (video adapter)
Connection

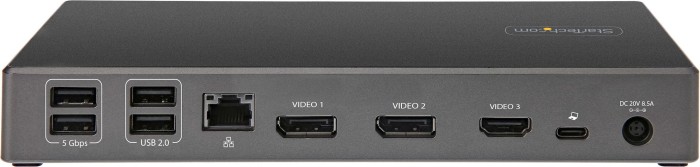

1x RJ-45, 2x USB-C 3.1 (socket), 2x USB-A 3.0 (socket), 2x USB-A 2.0 (socket), 1x SD Card, 2x DisplayPort 1.4 (socket), 1x HDMI 2.0 (socket), 1x jack (socket, 3.5mm)
Special features

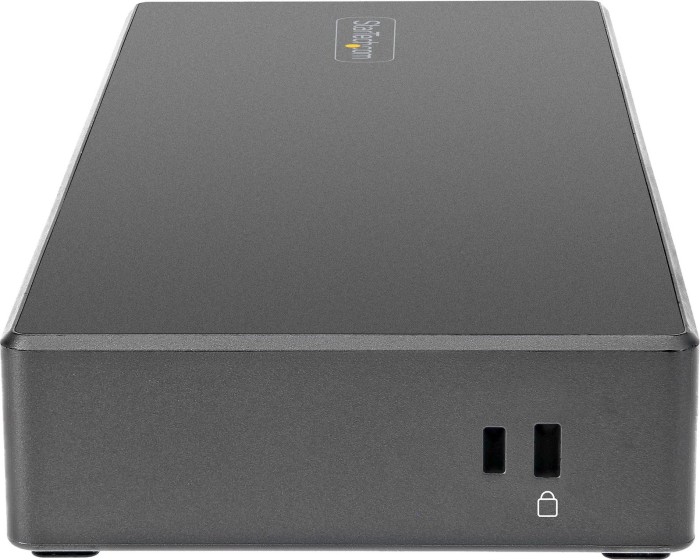

security lock (Kensington Security Slot), PXE-Bootrom, one/off-Switches
