Weight
275g
USB nomenclature
Link
manufacturer
StarTech
Compatibility
universal
Housing colour
grey
Type
LAN adapter, USB hub, video adapter, 1x external wired
Note

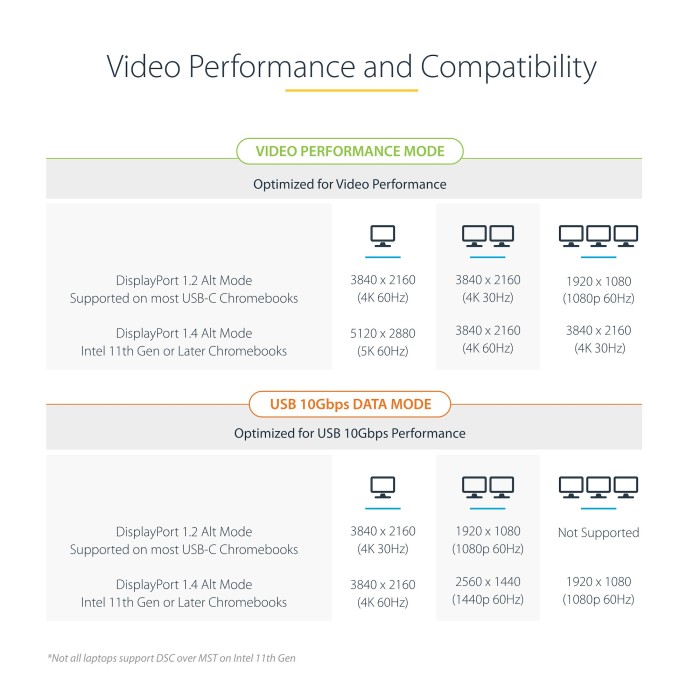

maximum simultaneous Monitors: 3 (max. 3x 3840x2160@30Hz or 2x 3840x2160@60Hz or 1x 5120x2880@60Hz)
Power supply
Power Supply only via connection, mains connection (1x barrel connector), External power supply required and included (1x barrel connector 20V/6.75A/135W)
Listed since
2023-11-23
Special features

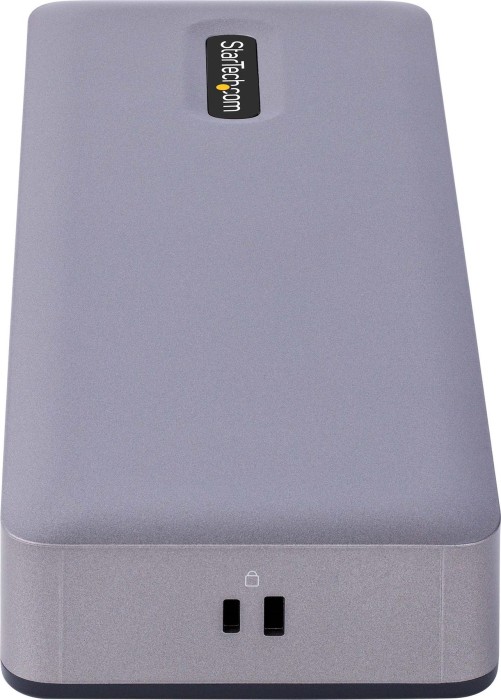

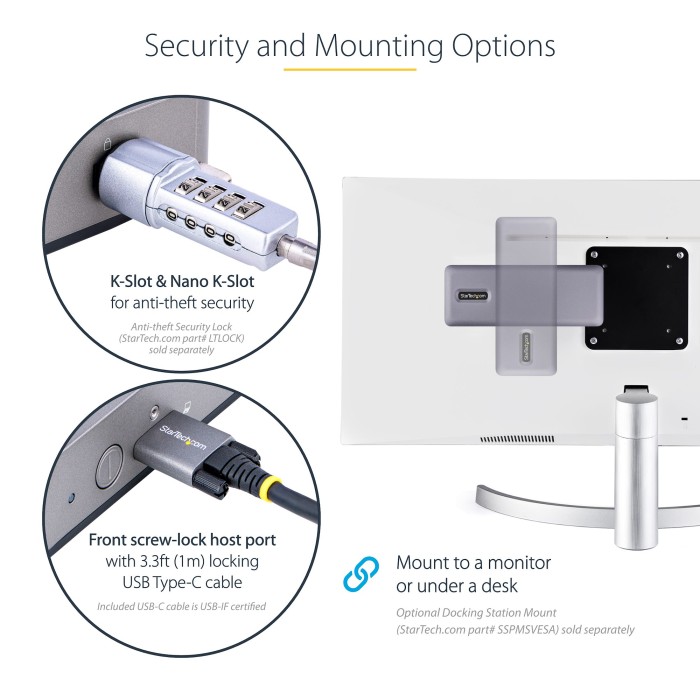

one/off-Switches, security lock (Kensington Security Slot, Kensington Nano Security Slot)
Connection

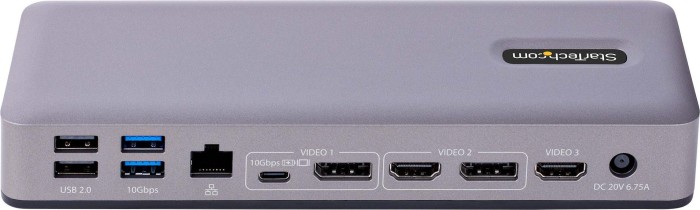

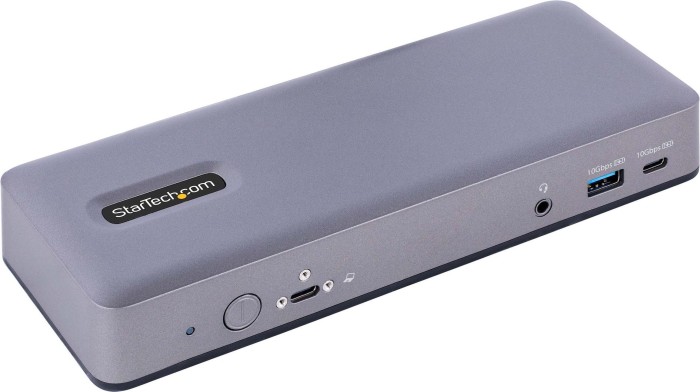

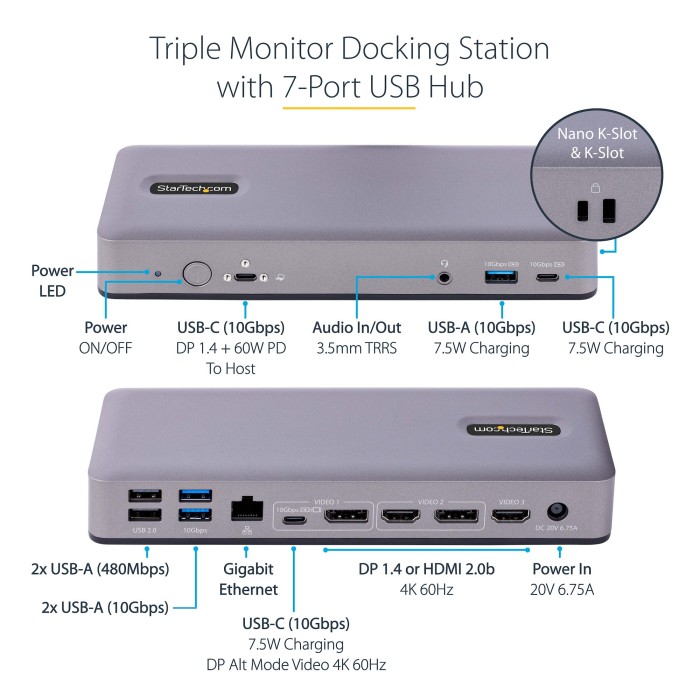

1x RJ-45, 1x USB-C 3.1 (socket), 1x USB-C 3.1 with DisplayPort 1.4 (socket), 3x USB-A 3.1 (socket), 2x USB-A 2.0 (socket), 2x HDMI 2.0b (socket), 2x DisplayPort 1.4 (socket), 1x jack
Transmission
1x RJ-45 (10/100/1000Base-T), 1x USB-C 3.1 (socket, 10Gb/s, USB BC), 1x USB-C 3.1 with DisplayPort 1.4 (socket, 10Gb/s, USB BC, 5V/1.5A/7.5W, max. 3840x2160@60Hz), 1x USB-A 3.1 (socket, 10Gb/s, USB BC 1.2), 2x USB-A 3.1 (socket, 10Gb/s), 2x HDMI 2.0b (socket, max. 3840x2160@60Hz), 2x DisplayPort 1.4 (socket, max. 3840x2160@60Hz), 1x jack
Chipset
Synaptics VMM5320 (video adapter), Realtek RTS5420 (USB hub, USB 3.0), Parade PS8468 (video adapter), Parade PS8469 (video adapter, DisplayPort), Parade PS8805 (video adapter, DisplayPort), Parade PS8803 (USB hub, USB 3.1), VIA VL822 (USB hub, USB 3.1), VIA VL211 (USB hub, USB 3.0), Realtek RTL8153B (LAN adapter, RJ-45)
Interface
1x USB-C 3.1 (socket, screwable, 10Gb/s, USB-C with DisplayPort 1.4, USB PD 3.0 max. 20V/3A/60W), 1x USB-C 3.1 (plug via cable, screwable, 10Gb/s)

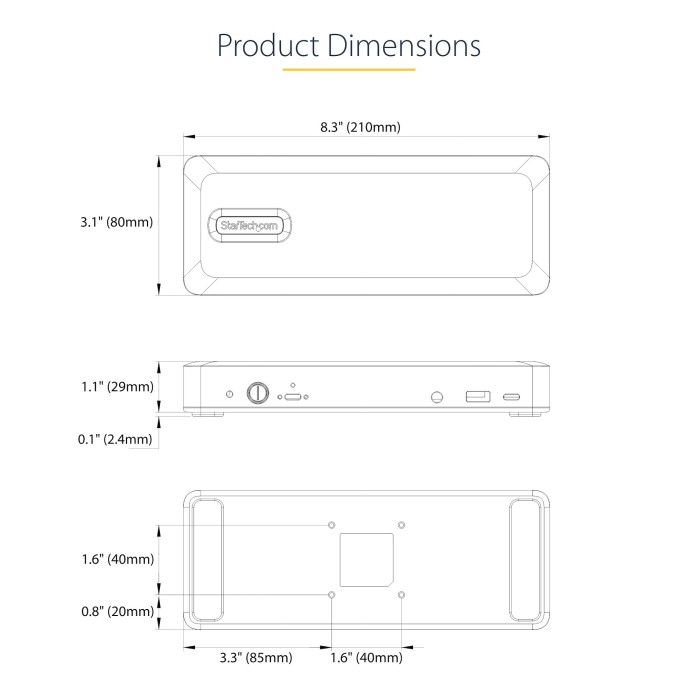

Dimensions
210x32x80mm
