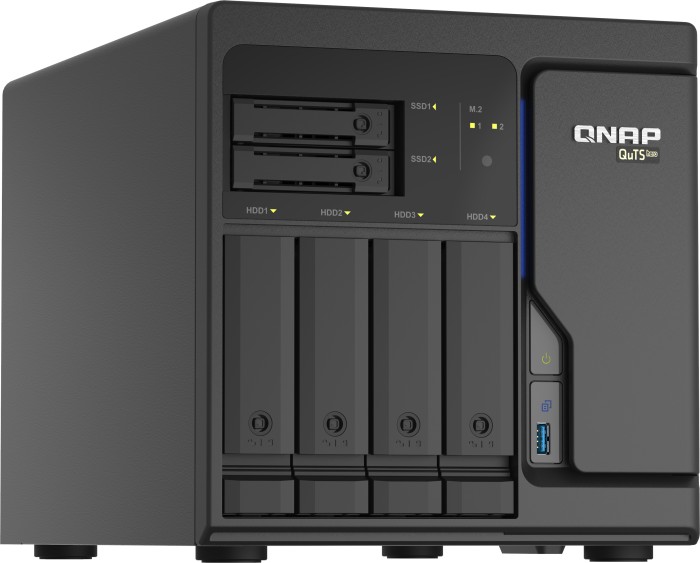

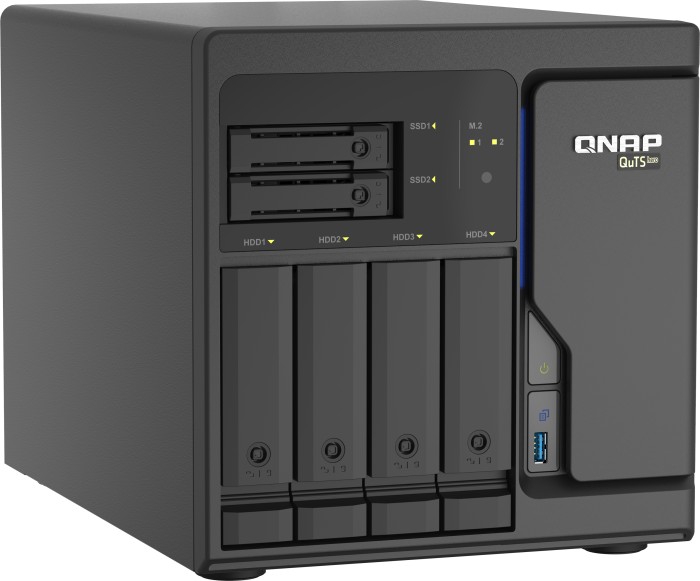

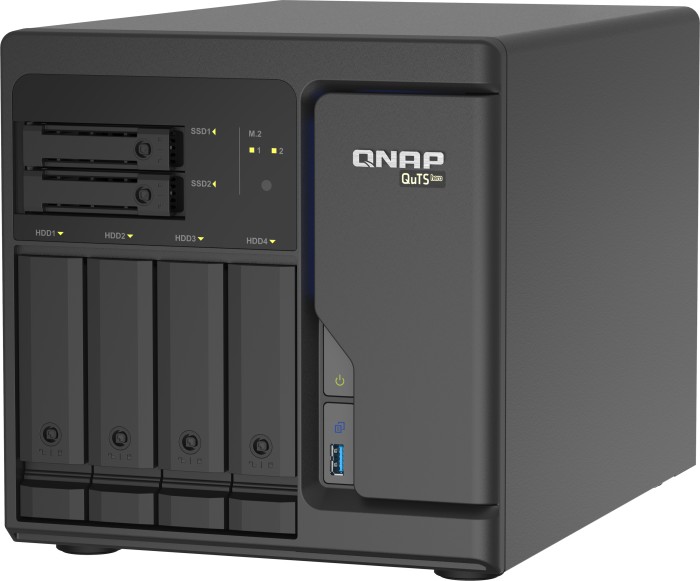

QNAP QuTS hero TS-h686-D1602-8G 56TB, 4x 2.5GBase-T

Product details

• USB nomenclature
  Link
• Listed since
  2020-08-31
• manufacturer
  QNAP
• Weight
  11.55kg
• RAID level
  0/1/5/6/10/JBOD
• HDD
  Attention! different configurations possible
• Warranty
  24 months (Applies to the storage system - different warranty periods may apply for storage extensions.)
• Additional connectors
  3x USB-A 3.0, 2x PCIe 3.0 x8, 2x M.2/M-Key (NVMe/PCIe, 22110/2280)
• external
  4x 2.5GBase-T
• CPU
  Intel Xeon D-1602, 2C/4T, 2.50-3.20GHz, 3MB+2MB cache, 27W TDP, Codename "Hewitt Lake" (Broadwell, Intel 14nm)
• RAM
  8GB DDR4 ECC (2x 4GB, 2 Slots free, max. 128GB), 5GB Flash
• Special features
  iSCSI, 256bit AES encryption, FTP server, DLNA-Server, iTunes-Server, BitTorrent-Client, WebDAV, IR-sensor, 4K transcoding, SSD-cache/TRIM-support, Theft protection (Kensington Lock)
• Internal
  4x 2.5"/3.5", 2x 2.5", SATA 6Gb/s, hot-swap
• Dimensions
  224.9x231.9x319.8mm (WxHxD)
• Fan(s)
  1x 97mm, 1x 80mm
