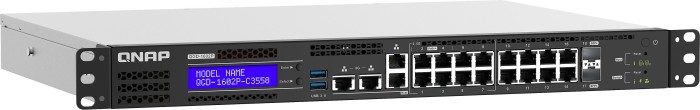

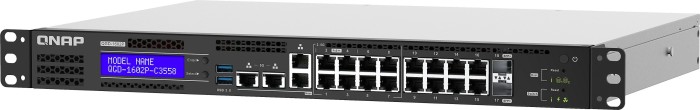

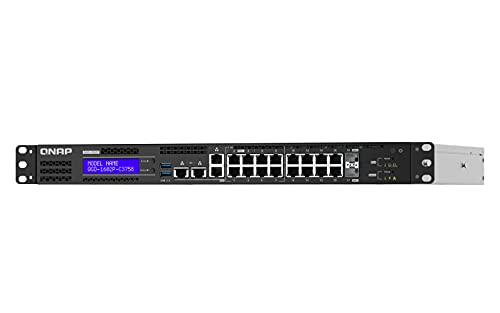

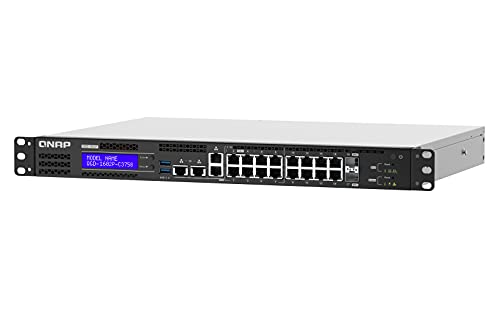

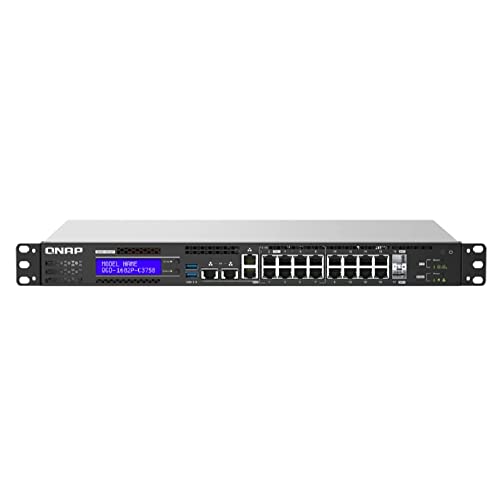

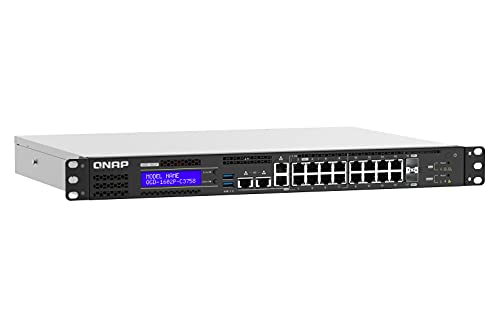

QNAP QGD-1602P Dual-System VM-Host & NAS Rackmount Gigabit Managed Switch, 16x RJ-45, 2x SFP+, PoE++ (QGD-1602P-C3758-16G)

Product details

• Weight
  4.37kg
• Listed since
  2020-11-25
• Warranty
  two years
• Colour
  anthracite, grey
• manufacturer
  QNAP
• Function
  switch
• Type

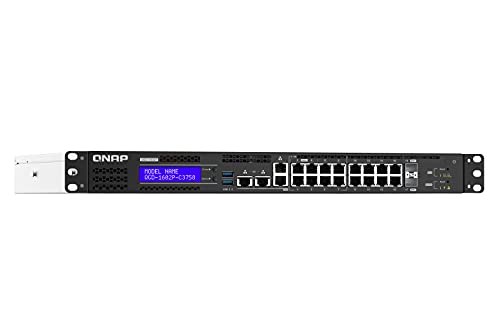

  standalone, control unit, Rackmount (via mounting bracket)
• Special features

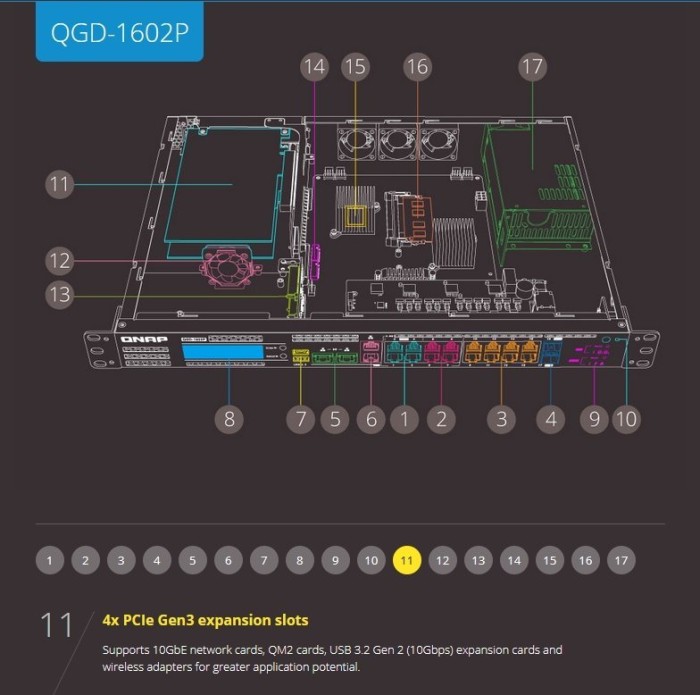

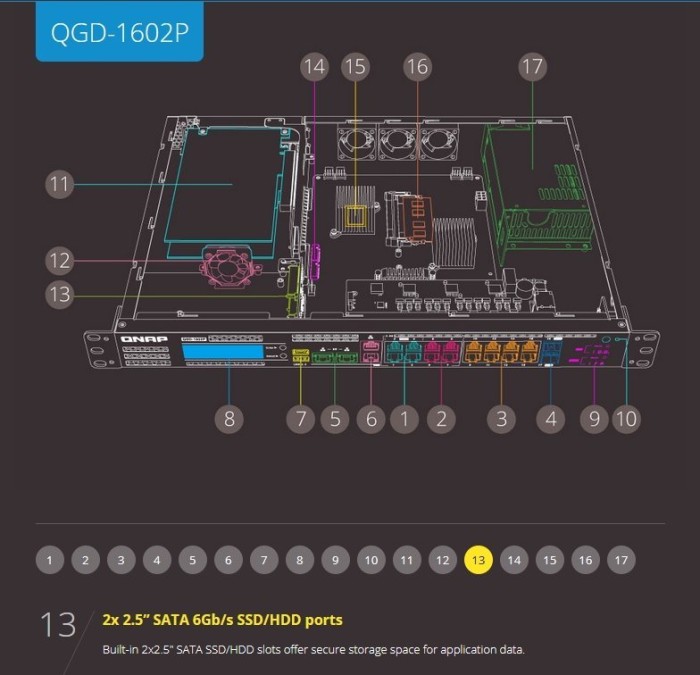

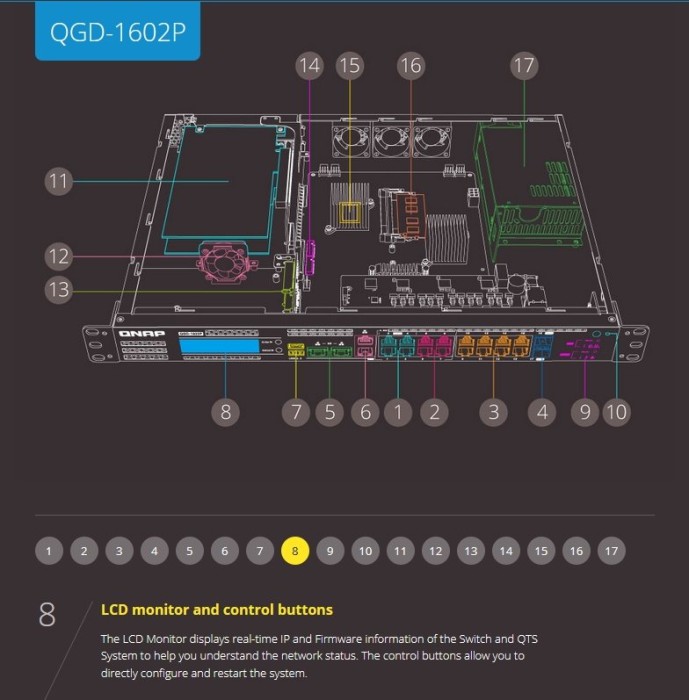

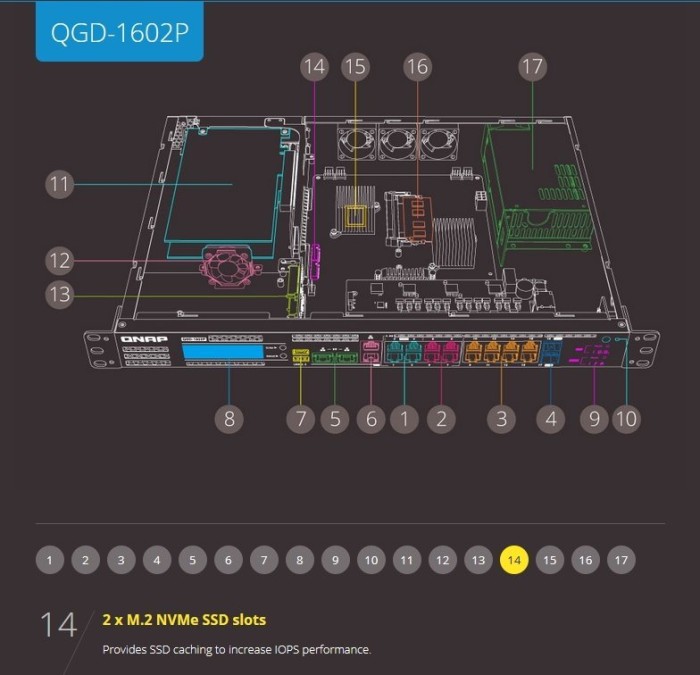

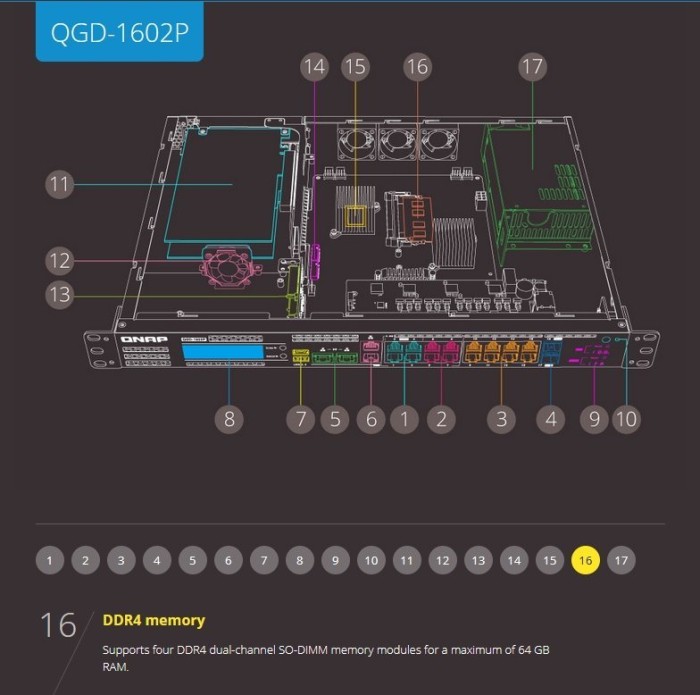

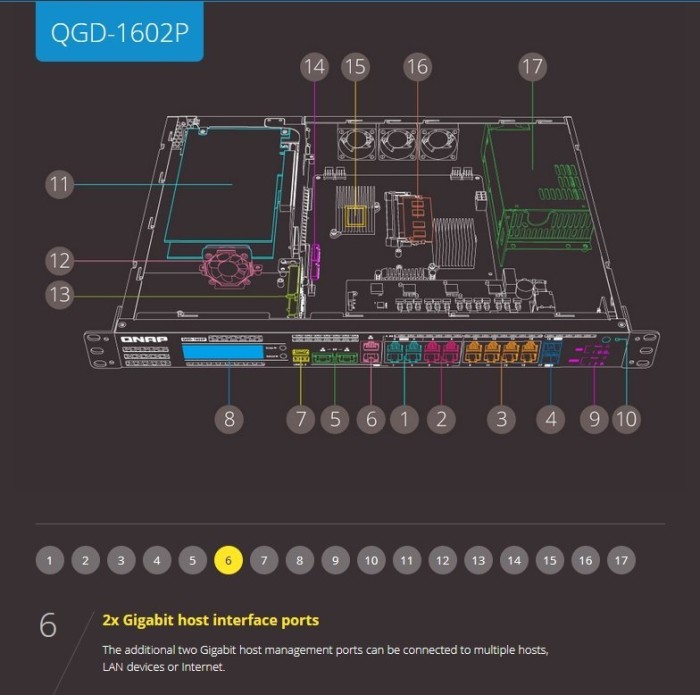

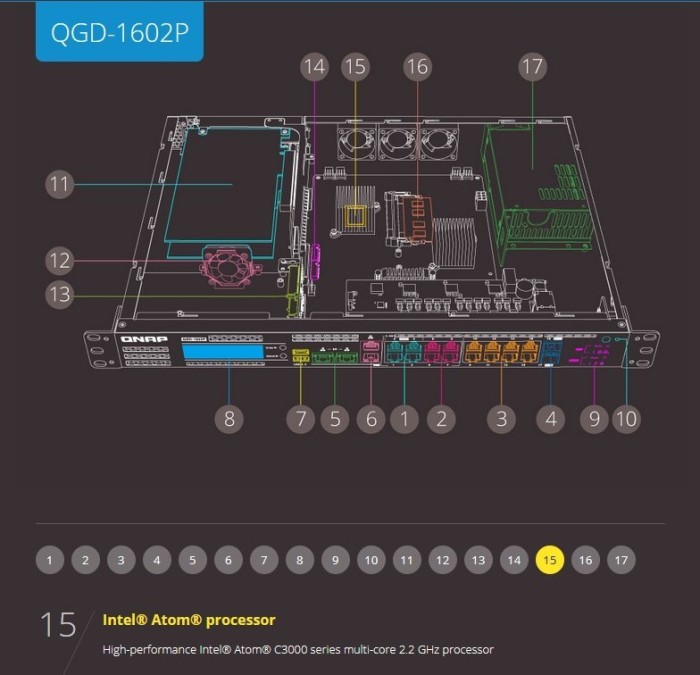

  metal housing, detachable mounting bracket, firmware updates possible, display, dedicated subsystem (NAS-functions, VM-Host, Video-monitoring, Print-Server, Intel Atom C3758, 16GB DDR4 SO-DIMM, 2x 2.5" SATA 6Gb/s, 2x M.2 NVMe, 2x PCIe 3.0 x4, 1x HDMI 2.0)
• Dimensions (WxHxD)
  435x44x328mm, 1U
• Backplane
  96Gb/s, 9kB Jumboframes, 32K Mac-addresses
• official supported Standards
  802.1p, 802.1Q, 802.3ab, 802.3ae, 802.3af, 802.3an, 802.3at, 802.3bt, 802.3bz, 802.3u, 802.3x, 802.3z, IGMPv3
• Speeds

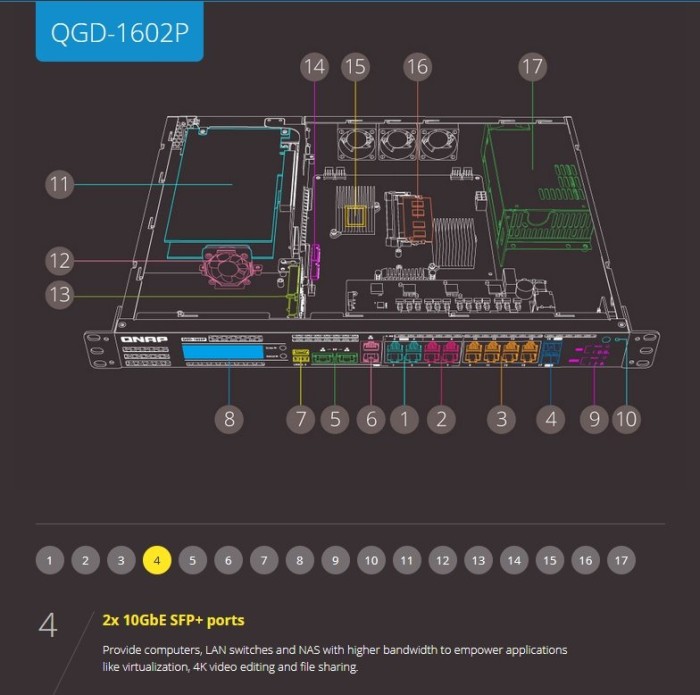

  8x RJ-45 (10/100/1000/2.5GBase-T), 8x RJ-45 (10/100/1000Base-T), 2x SFP+ (1G/10Gb/s)
• Configuration

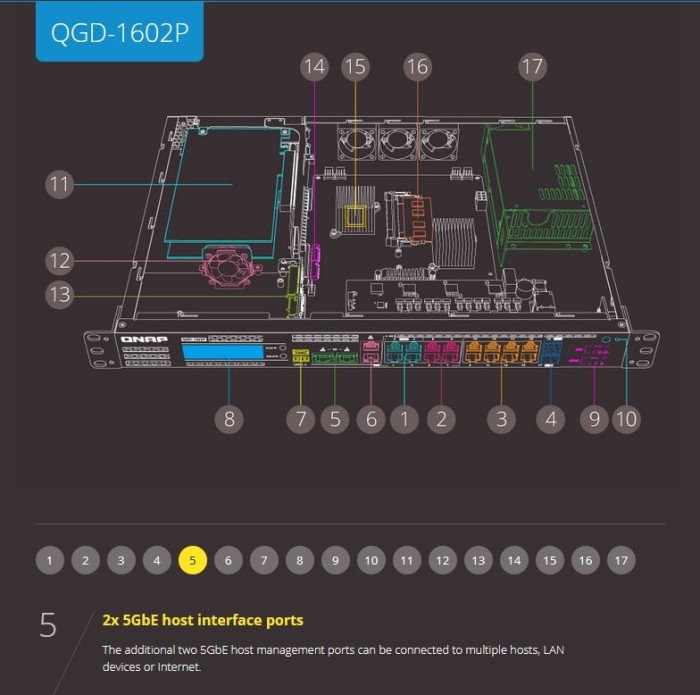

  Webinterface, Console, Network (2x RJ-45, dedicated, 10/100/1000/5GBase-T), Network (2x RJ-45, dedicated, 10/100/1000Base-T), WLAN-controller (2x RJ-45 10/100/1000/5GBase-T)
• PoE

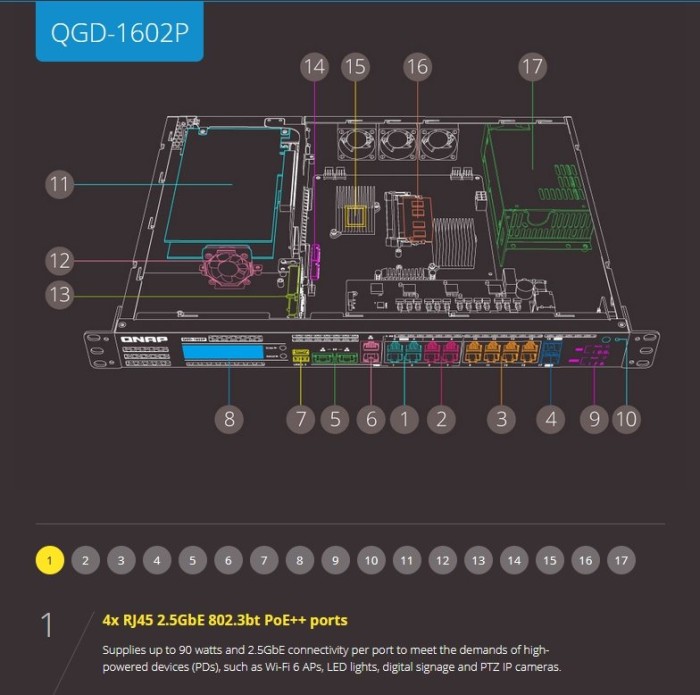

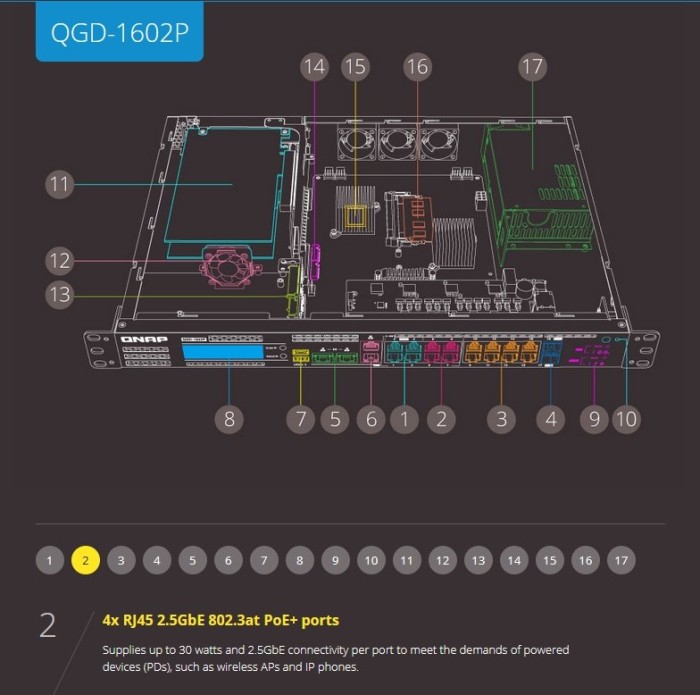

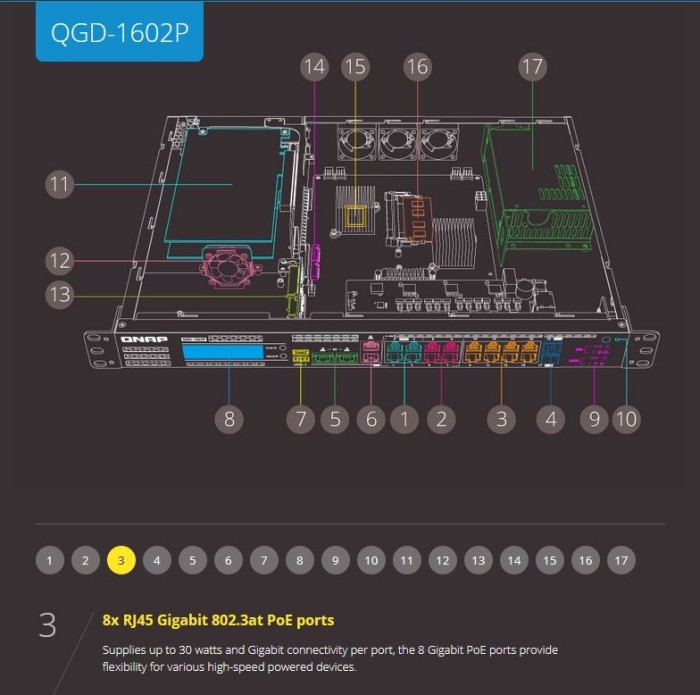

  4x RJ-45 PoE++ (4x 90W), 12x RJ-45 PoE+ (12x 30W), entire: 380W
• Network connection
  16x RJ-45, 2x SFP+
• Cooling

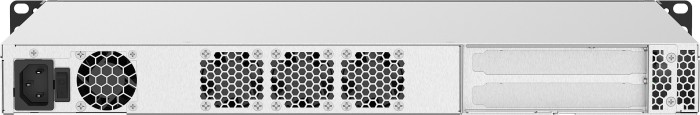

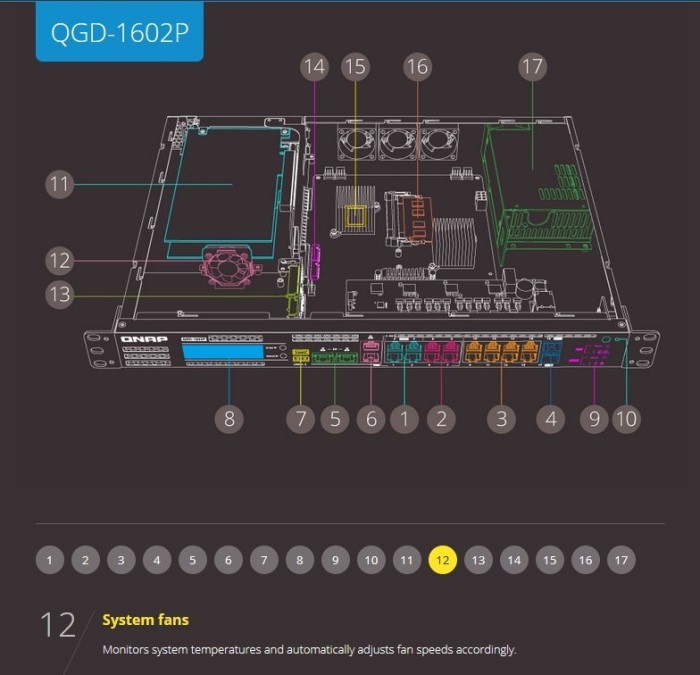

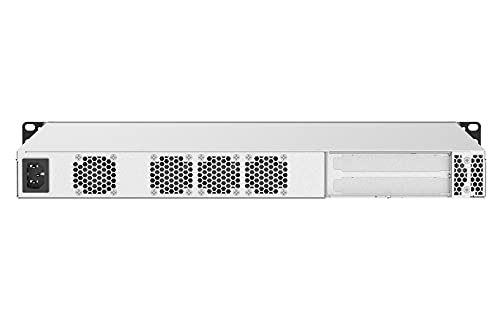

  active, 3x fan (40mm, rear), 1x fan (40mm, power supply, rear), 1x fan (40mm, internal)
• Warranty
  two years
• Configuration
  Webinterface, Console, Network (2x RJ-45, dedicated, 10/100/1000/5GBase-T), Network (2x RJ-45, dedicated, 10/100/1000Base-T), WLAN-controller (2x RJ-45 10/100/1000/5GBase-T)
• Speeds
  8x RJ-45 (10/100/1000/2.5GBase-T), 8x RJ-45 (10/100/1000Base-T), 2x SFP+ (1G/10Gb/s)
• Colour
  anthracite, grey
• Special features
  metal housing, detachable mounting bracket, firmware updates possible, display, dedicated subsystem (NAS-functions, VM-Host, Video-monitoring, Print-Server, Intel Atom C3758, 16GB DDR4 SO-DIMM, 2x 2.5" SATA 6Gb/s, 2x M.2 NVMe, 2x PCIe 3.0 x4, 1x HDMI 2.0)
• Brand
  QNAP
• Height
  1.740154
• Length
  12.901549
• Width
  17.133824
