Lenovo ThinkPad universal USB-C Dock v2 (40B7), USB-C 3.1 [socket] (40B70090EU)

Product details

• Weight
  340g
• Listed since
  2023-09-13
• manufacturer
  Lenovo
• Warranty
  three years
• USB nomenclature
  Link
• Compatibility
  universal
• Dimensions
  171x31x80mm (WxHxD)
• Note
  maximum simultaneous Monitors: 3 (max. 2x 3840x2160@60Hz + 1x 2560x1440@60Hz)
• Type
  LAN adapter, USB hub, video adapter, 1x external wired
• Interface
  1x USB-C 3.1 (socket, 10Gb/s, USB-C with DisplayPort, USB PD max. 96W), 1x USB-C 3.1 (plug via cable, 10Gb/s, 1m cable length)
• Power supply
  Power Supply not via connection, mains connection (1x Lenovo Slim tip, max. 135W), External power supply required and included (1x Lenovo Slim tip 90W, pass-through 65W)
• Transmission
  1x RJ-45 (10/100/1000Base-T), 1x USB-C 3.1 (socket, 10Gb/s, 5V/3A/15W), 1x USB-A 3.1 (socket, 10Gb/s, 5V/3A/15W), 2x USB-A 3.1 (socket, 10Gb/s), 2x USB-A 2.0 (socket, 480Mb/s), 1x HDMI 2.1 (socket, max. 7680x4320@60Hz), 2x DisplayPort 1.4 (socket, max. 3840x2160@60Hz), 1x jack (socket, 3.5mm)
• Housing colour
  grey (Storm Grey)
• Connection

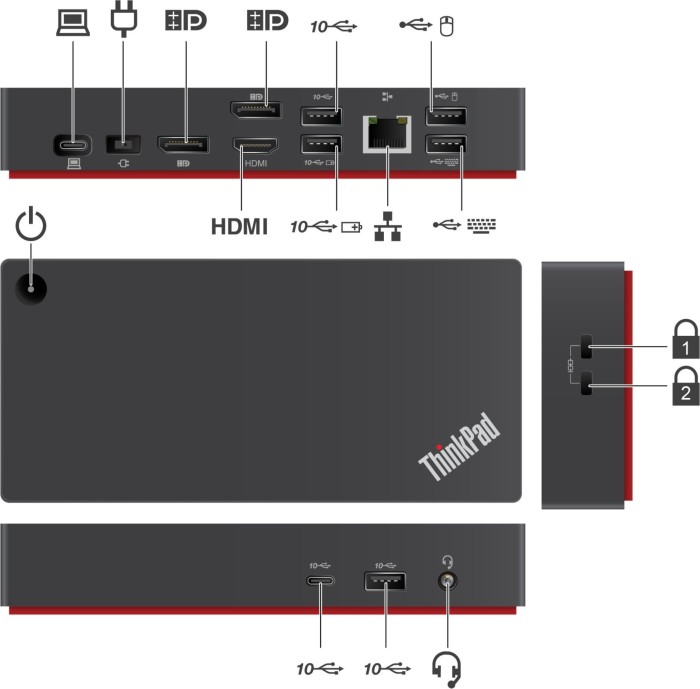

  1x RJ-45, 1x USB-C 3.1 (socket), 3x USB-A 3.1 (socket), 2x USB-A 2.0 (socket), 1x HDMI 2.1 (socket), 2x DisplayPort 1.4 (socket), 1x jack
• Special features
  one/off-Switches, PXE-Bootrom, Wake on LAN, security lock (Kensington Security Slot, Kensington Nano Security Slot)
