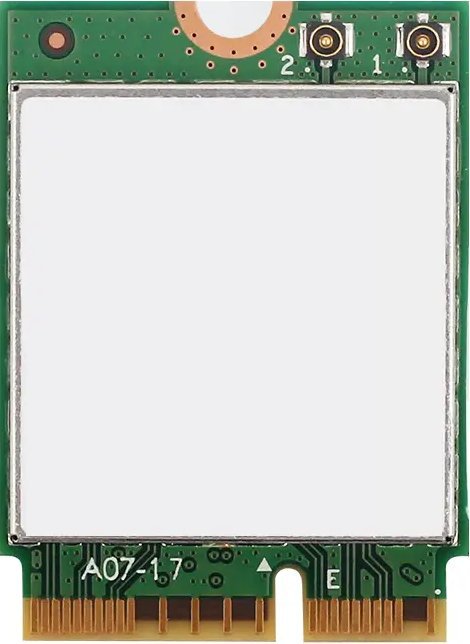

Intel Killer Wi-Fi 6E AX1690 Gig+ module, AX411 without vPro, 2.4GHz/5GHz/6GHz WLAN, Bluetooth 5.3, M.2/E-Key (AX411.NGWG.NVX)

Product details

• Listed since
  2022-09-28
• manufacturer
  Intel
• Warranty
  three years
• Compatibility
  universal
• Dimensions
  22x2.4x30mm (WxHxD)
• Type
  WLAN adapter, WPAN adapter, 1x M.2 module 2230
• Interface
  1x M.2/E-Key (Intel CNVi CNVio2)
• Connection
  1x WLAN 802.11a/b/g/n/ac/ax (1x 2.4GHz/1x 5GHz/1x 6GHz simultaneous, incl. 802.11h/d/e/i/k/n/r/u/v/w/ai, via M.2 PCIe), 1x Bluetooth 5.3 (LE, via M.2 USB), 1x transmission amplifier (2x MHF/U.FL antenna connector)
• Note
  CNVio2 is not compatible with CNVi. CNVi requires Intel 8. or 9th generation (Coffe Lake, Gemini Lake). CNVio2 requires at least Intel 10th generation (Comet Lake, Ice Lake).
• Transmission
  1x 2.4GHz WLAN (574Mb/s, 2x2, 40MHz, 1024-QAM, via M.2 PCIe), 1x 5GHz WLAN (2.402Gb/s, 2x2, 160MHz, 1024-QAM, via M.2 PCIe), 1x 6GHz WLAN (2.402Gb/s, 2x2, 160MHz, 1024-QAM, via M.2 PCIe), 1x Bluetooth 5.3 (via M.2 USB)
• Weight
  2.8g
• Special features
  TPC/DFS, MU-MIMO, Intel Double Connect Technology (DCT)
• Chipset
  Intel AX411 (WLAN Adapters, WPAN adapter)
