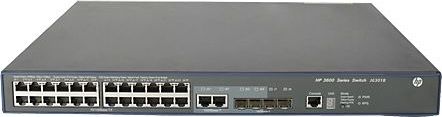

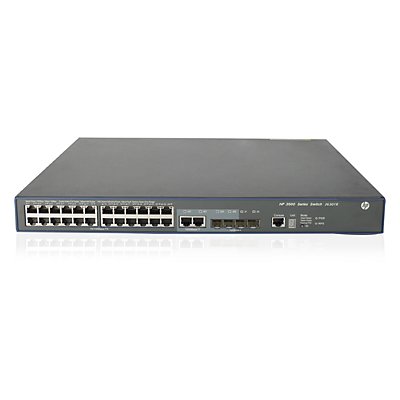

HP FlexNetwork 3600 24 EI v2 Rackmount Managed Stack Switch, 24x RJ-45, 2x RJ-45/SFP, 2x SFP, PoE+ (JG301B)

Product details

• Colour
  black
• Weight
  10.00kg
• Listed since
  2014-06-11
• manufacturer
  HP
• Cooling
  active
• Warranty
  lifetime (10 years in AT/DE)
• Type
  standalone, Rackmount (via mounting bracket)
• Function
  switch
• Note
  For this device "link aggregation" was officially specified with the obsolete standard IEEE802.3ad. Since 2008, the function is no longer administered by the IEEE "Working Group 3" (IEEE 802.3, CSMA/CD - Ethernet), but by "Working Group 1" (IEEE 802.1, High Level Interface - Internetworking) and defined technically unchanged via IEEE 802.1AX.
• Configuration
  Webinterface, Console, serial (RJ-45)
• Network connection
  24x RJ-45, 2x RJ-45/SFP, 2x SFP
• Speeds
  24x RJ-45 (10/100Base-T), 2x RJ-45 (10/100/1000Base-T), 2x SFP (1Gb/s)
• PoE
  24x RJ-45 PoE+ (24x 30W), entire: 720W
• Dimensions (WxHxD)
  440x44x420mm, 1U
• Special features
  metal housing, detachable mounting bracket, display, firmware updates possible, screw clamps (54-57V), remote power supply, optional external redundant power supply (redundant power supply)
• official supported Standards
  802.1AX, 802.1AB, 802.1D, 802.1Q, 802.1X, 802.1ad, 802.1p, 802.1s, 802.1v, 802.1w, 802.3, 802.3ab, 802.3ac, 802.3af, 802.3ah, 802.3at, 802.3i, 802.3u, 802.3x, 802.3z, IGMPv3, MLDv2
• Backplane
  12.8Gb/s, 9.5Mp/s, 9KB Jumboframes, 2MB packet buffer, 32k Mac-addresses
• Brand
  HP
• Length
  17.32
• Width
  16.54
• Height
  1.72
