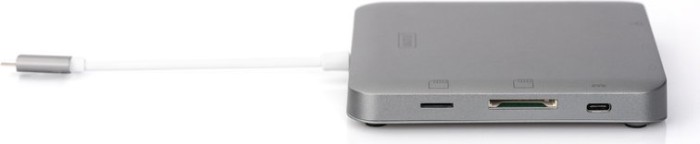

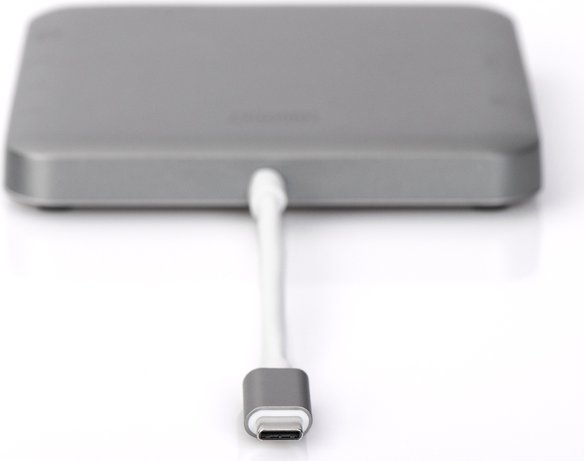

Digitus universal Docking station, Multiport, USB hub, dual-slot-Card Readers, USB-C 3.0 [plug] (DA-70876)

Product details

• Listed since
  2021-02-15
• Weight
  230g
• manufacturer
  Digitus
• USB nomenclature
  Link
• Compatibility
  universal
• Special features
  metal housing
• Housing colour
  grey
• Type
  LAN adapter, USB hub, card reader, video adapter, 1x external wired (connection cable not detachable)
• Chipset
  VIA/VLI VL102 (USB PD), Realtek RTL8153 (LAN adapter, RJ-45), VIA/VLI VL817 (USB hub, USB 3.0), MegaChips STDP4320 (video adapter), Parade PS8339B (video adapter), Analogix ANX9833 (video adapter, DisplayPort on VGA)
• Power supply
  Power Supply also via connection, mains connection (1x USB-C socket USB PD 2.0 max. 20V/3A/60W, pass-through 60W), External power supply possible but not included
• Interface
  1x USB-C 3.0 (plug via cable, 5Gb/s, USB-C with DisplayPort 1.2, USB PD 2.0 max. 20V/3A/60W, 10cm cable length)
• Dimensions
  120x17x120mm (WxHxD)

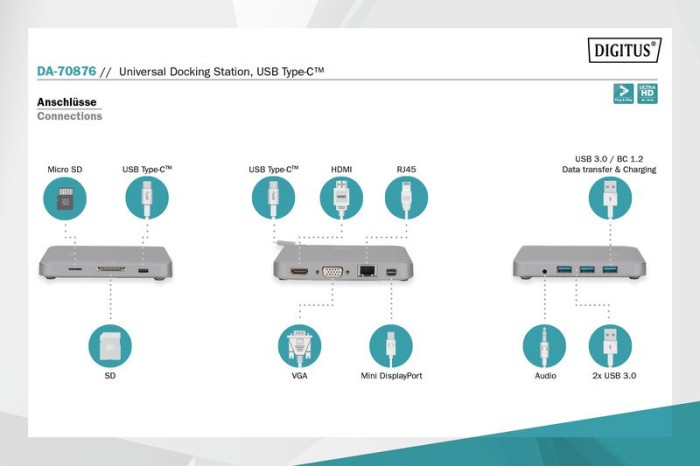

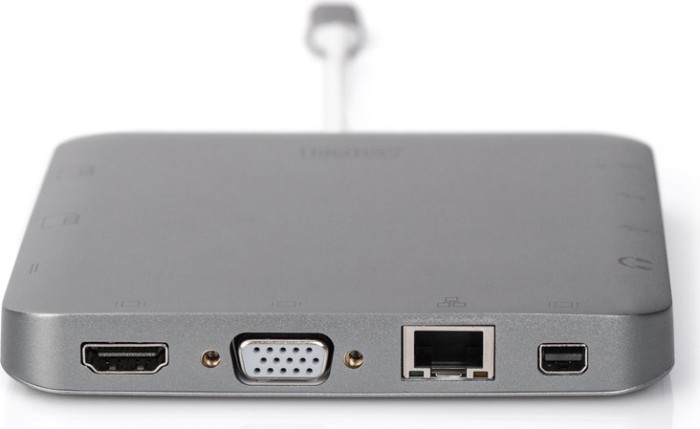

• Connection
  1x RJ-45, 3x USB-A 3.0 (socket), 1x microSD, 1x SD Card, 1x VGA (socket) or 1x HDMI (socket), 1x mini DisplayPort 1.2 (socket), 1x jack (socket, 3.5mm)
• Transmission
  1x RJ-45 (10/100/1000Base-T), 2x USB-A 3.0 (socket, 5Gb/s, 5V/1A/5W, entire 5V/1A/5W), 1x USB-A 3.0 (socket, 5Gb/s, USB BC 1.2, 5V/1.5A/7.5W), 1x microSD (microSD, UHS-I), 1x SD Card (SD Card, UHS-I, MMC), 1x VGA (socket, max. 1920x1200@60Hz), 1x HDMI (socket, max. 4096x2160@30Hz), 1x mini DisplayPort 1.2 (socket, max. 4096x2160@30Hz), 1x jack (socket, 3.5mm), USB-A Total output: 10W
