USB nomenclature
Link
Warranty
two years
manufacturer
Cooler Master
Viewing angle
178°/178°
VESA
100x100 (occupied)
HDR
VESA DisplayHDR 400
Variable Synchronization
Adaptive Sync, AMD FreeSync, NVIDIA G-Sync Compatible
Response time
2ms (GtG), 0.5ms (MPRT)
Power supply
internal
Listed since
2024-02-05
Screen-to-Body-Ratio
not available
Backlight
LED, blue light filter, flicker-free
Function
monitor (stationary)
Coating
non-glare (matte)
Operation
D-pad
Colour
black (Display surrounding) / black (lower bezel) / black (pedestal) / black (back side)
Contrast
4.000:1 (static)
Resolution
3440x1440 (UWQHD), 21:9, 110ppi
Speakers
loudspeaker (2x 5W)
Brightness
320cd/m² (typical)
Shape
bent (curved), 1500R/1.50m
Special features
security lock (Kensington Security Slot), KVM switch, Picture-in-Picture, slim bezel
Refresh rate
165Hz (180Hz OC, 3440x1440)
Panel
VA, Quantum-Dot, Manufacturer: Samsung
Weight
8.05kg (with pedestal)
Power consumption
158W (maximum), 30W (typical), 0.5W (standby)
Ergonomics
with pedestal, height-adjustable (80mm), Pivot not available, rotatable (±15°), tiltable (+15°/-5°)

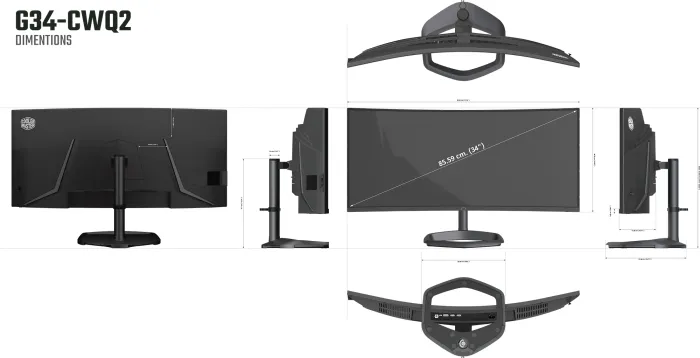

Dimensions
806.5x385x273.7mm (WxHxD) with pedestal compressed, 806.5x465x273.7mm (WxHxD) with pedestal extracted, 806.5x361.7x124.6mm (WxHxD) without pedestal
Colour depth
10bit (1.07 billion colours, 8bit+2bit FRC)
Screen size
34" (86.4cm), Class: 33"-34"
Connectors
2x HDMI 2.0 (100Hz@3440x1440), 1x DisplayPort 1.4 (180Hz@3440x1440), 1x USB-C 3.0 with DisplayPort 1.4 (Upstream, 5Gb/s, PD 65W, 180Hz@3440x1440), 1x USB-B 3.0 (Upstream, 5Gb/s), 2x USB-A 3.0 (downstream, 5Gb/s), 1x 3.5mm jack (Line-Out), 1x AC-In C14 (mains connection)
Colour
black (Display surrounding) / black (lower bezel) / black (pedestal) / black (back side)
Backlight
LED, blue light filter, flicker-free
Warranty
two years
Operation
D-pad
Shape
bent (curved), 1500R/1.50m
Colour depth
10bit (1.07 billion colours, 8bit+2bit FRC)
Contrast
4.000:1 (static)
Special features
security lock (Kensington Security Slot), KVM switch, Picture-in-Picture, slim bezel
Power consumption
158W (maximum), 30W (typical), 0.5W (standby)
Bandwidth
angenäherter bandwidth-demand: 24.52Gb/sHDMI 2.0 max. Bandwidth: 14.4Gb/sDisplayPort 1.4 max. Bandwidth: 32.4Gb/sUSB-C 3.0 with DisplayPort 1.4 max. Bandwidth: 32.4Gb/sZur transmission of Bildinhalten in the native resolution at maximum refresh rate, colour depth and Unterabtastung is at the activation via HDMI 2.0 eine Datenkompressions technology how DSC wahrscheinlich required.
Response time
2ms (GtG), 0.5ms (MPRT)
Ergonomics
with pedestal, height-adjustable (80mm), Pivot not available, rotatable (±15°), tiltable (+15°/-5°)
Brightness
320cd/m² (typical)
Variable Synchronization
Adaptive Sync, AMD FreeSync, NVIDIA G-Sync Compatible
