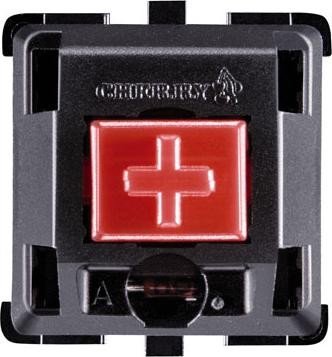

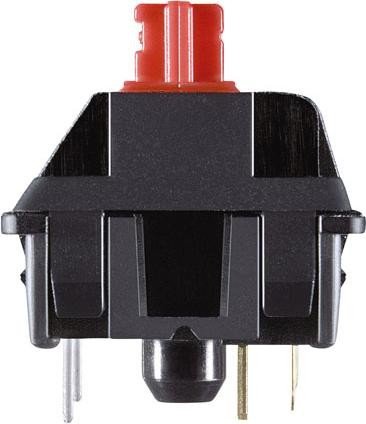

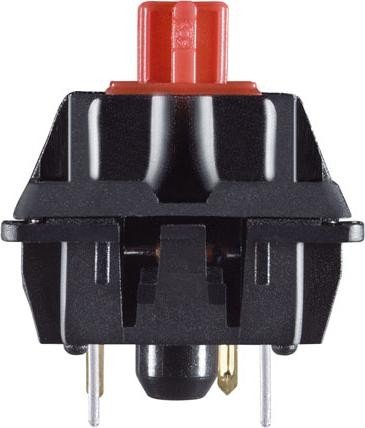

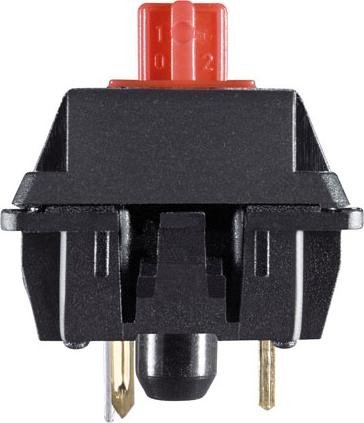

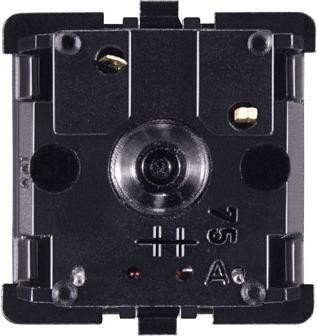

Cherry MX-Red switch (MX1A-L1NN)

Product details

• Listed since
  2017-10-23
• manufacturer
  Cherry
• Type
  Keyboard switch
• shock absorption
  without
• Contact Feedback
  without
• Pressure point force
  not available
• Durability
  50 Mio.
• Switch manufacturer
  Cherry
• Operation characteristics
  linear
• Actuation force
  45.00cN (±15.00cN tolerance) ~ 45.89gf (±15.30gf tolerance)
• Initial force
  30.00cN ~ 30.59gf
• switch-Model
  RED
• Pretravel
  2.00mm (±0.60mm tolerance)
• Actuator travel
  4.00mm (-0.40mm tolerance)
• Installation
  PCB or frame
• Note
  key frame required (mounting using snap fastening in the frame)
• Lighting
  2-Pin LED
