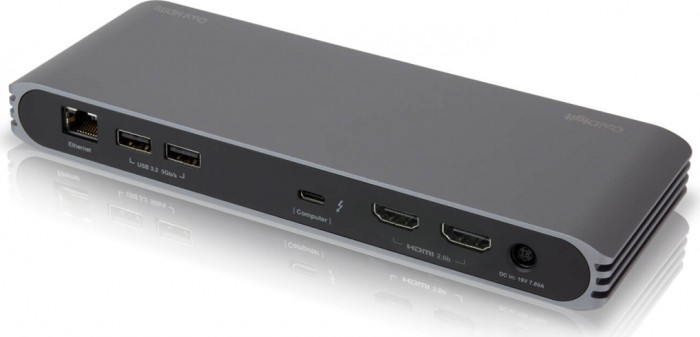

CalDigit USB-C HDMI Dock, Thunderbolt 3 [socket] (500905)

Product details

• Weight
  420g
• Listed since
  2021-01-18
• USB nomenclature
  Link
• Warranty
  two years
• Compatibility
  universal
• manufacturer
  CalDigit
• Special features
  metal housing
• Housing colour
  grey, black
• Type
  LAN adapter, USB hub, card reader, video adapter, 1x external wired
• Dimensions
  214x25x80mm (WxHxD)
• Power supply
  Power Supply not via connection, mains connection (1x barrel connector 19V/7.89A/150W), External power supply required and included (19V/7.89A/150W)
• Chipset
  Intel Titan Ridge JHL7540 (Thunderbolt 3)
• Interface
  1x Thunderbolt 3 (socket, 40Gb/s, USB-C with DisplayPort 1.4, USB PD max. 94W), 1x Thunderbolt 3 (plug via cable, 40Gb/s, 70cm cable length)
• Transmission

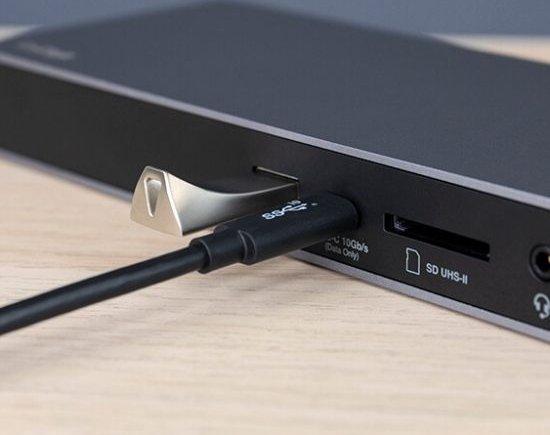

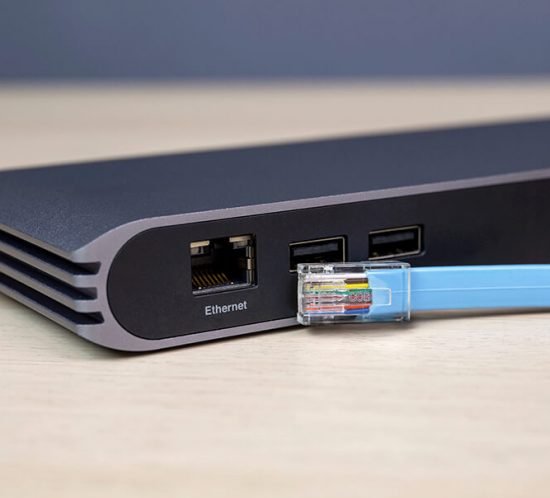

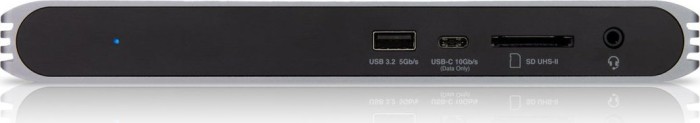

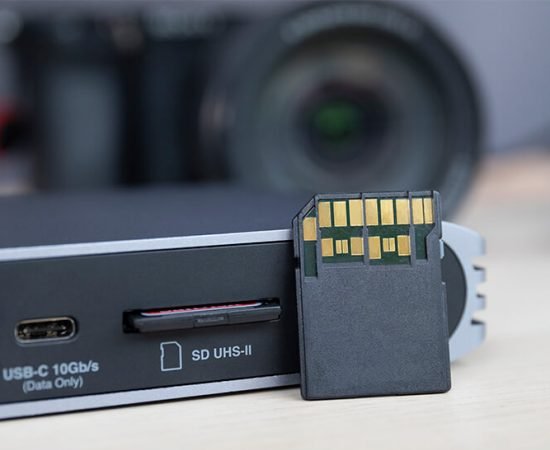

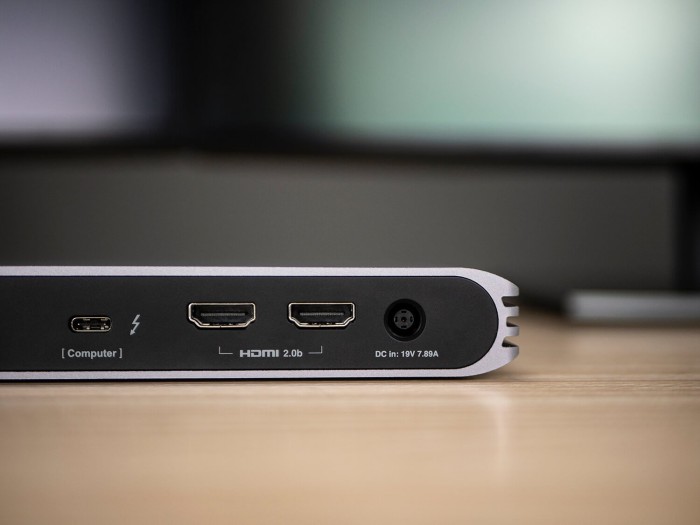

  1x RJ-45 (10/100/1000Base-T), 1x USB-C 3.1 (socket, 10Gb/s), 3x USB-A 3.1 (socket, 10Gb/s), 1x SD Card (SD Card, UHS-II), 2x HDMI 2.0b (socket, max. 2x 2048x1080@30Hz or 1x 4096x2160@60Hz), 1x jack (socket, 3.5mm)
• Connection

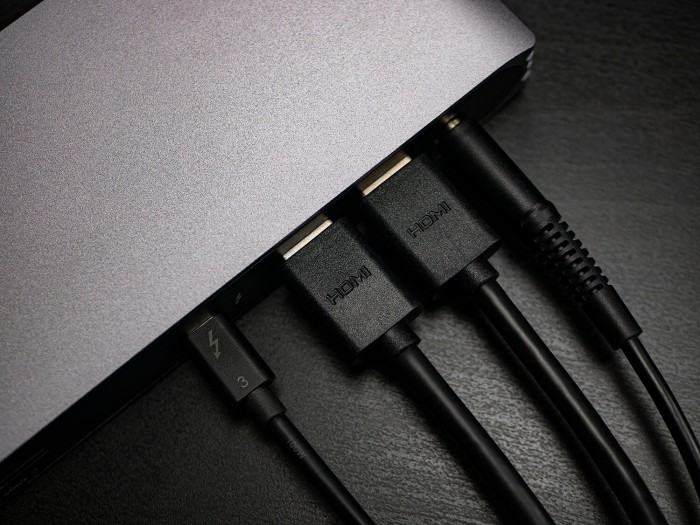

  1x RJ-45, 1x USB-C 3.1 (socket), 3x USB-A 3.1 (socket), 1x SD Card, 2x HDMI 2.0b (socket), 1x jack (socket, 3.5mm)
