ASRock J4125B-ITX (90-MXBCH0-A0UAYZ)

Product details

• Listed since
  2020-10-12
• RAID level
  not available
• Chipset
  System-on-Chip (SoC)
• USB nomenclature
  Link
• Wireless
  not available
• manufacturer
  ASRock
• RAM
  2x DDR4 SO-DIMM, dual PC4-19200S/DDR4-2400, max. 8GB (UDIMM)
• Graphics
  Intel UHD Graphics 600 (iGPU), 12EU/96SP, 0.25-0.75GHz, Architecture "Gen 9.5" (Gemini Lake GT1)
• Lighting
  not available
• CPU
  Intel Celeron J4125, 4C/4T, 2.00-2.70GHz, 4MB cache, 10W TDP, Codename "Gemini Lake Refresh" (Goldmont Plus, Intel 14nm)
• Form factor
  Mini-ITX
• BIOS
  1x 16MB (128Mb)
• Multi-GPU
  not available
• Header Lighting
  not available
• Audio
  7.1 (Realtek ALC887)
• Power connections
  1x 24-Pin ATX
• Special features
  audio+solid capacitors, passive cooled
• Header Cooling
  1x CPU fan 3-Pin, 1x fan 3-Pin
• Extension slots
  1x PCIe 2.0 x16 (x2)

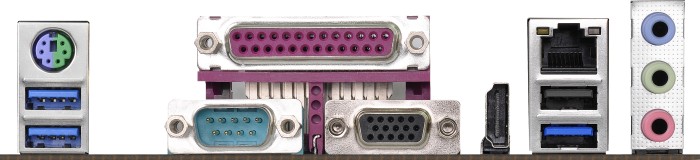

• External connectors
  1x VGA (iGPU), 1x HDMI 1.4 (iGPU), 3x USB-A 3.0 (5Gb/s), 1x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek RTL8111H), 3x jack, 1x PS/2 Combo, 1x serial, 1x parallel
• Internal connectors
  1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 2x SATA 6Gb/s (J4125), 1x serial, 1x Speaker-Header, 1x Chassis Intrusion-Header
