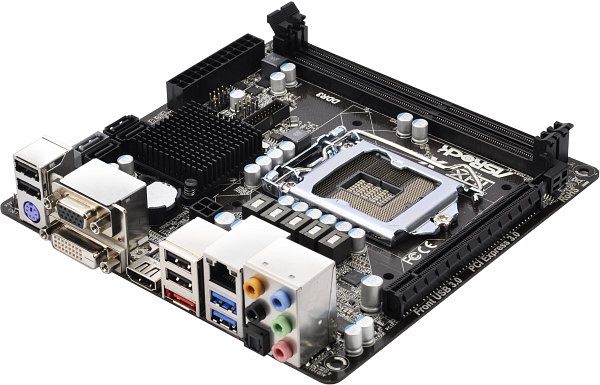

ASRock B75M-ITX (90-MXGLT0-A0UAYZ)

Product details

• Listed since
  2012-04-04
• RAID level
  not available
• Extension slots
  1x PCIe 3.0 x16
• USB nomenclature
  Link
• Wireless
  not available
• manufacturer
  ASRock
• Lighting
  not available
• Graphics
  iGPU
• Audio
  7.1 (Realtek ALC892)
• Form factor
  Mini-ITX
• Header Cooling
  1x CPU fan 4-Pin, 1x fan 4-Pin
• Multi-GPU
  not available
• Header Lighting
  not available
• Power connections
  1x 24-Pin ATX, 1x 4-Pin ATX12V
• Special features
  All solid capacitors
• Socket
  Intel 1155
• Internal connectors
  1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 1x USB 2.0 header (480Mb/s, 2x USB 2.0), 1x SATA 6Gb/s (B75), 3x SATA 3Gb/s, 1x CIR-Header
• RAM
  2x DDR3 DIMM, dual PC3-17600U/DDR3-2200 (OC), max. 16GB (UDIMM)
• Chipset
  Intel B75

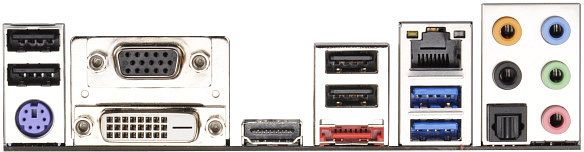

• External connectors
  1x VGA (iGPU), 1x DVI-D (iGPU), 1x HDMI 1.4 (iGPU), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x eSATA 6Gb/s (B75), 1x RJ-45 1Gb LAN (Realtek RTL8111E), 5x 3.5mm jack, 1x toslink S/PDIF Out, 1x PS/2 keyboard
